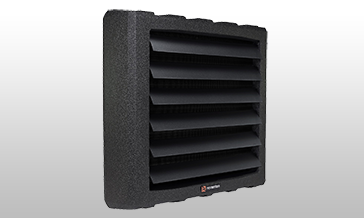

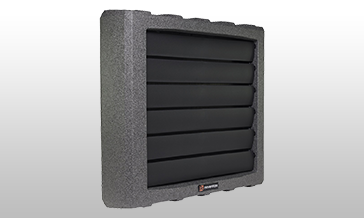

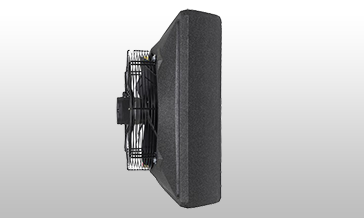

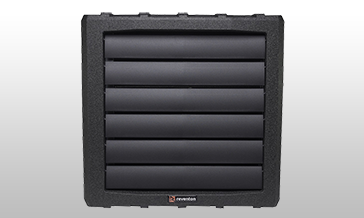

Series Farmer HCF IP 65

Advantages:

  • LCE coating
  • EPP casing

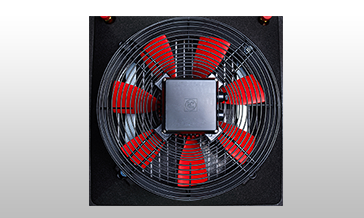

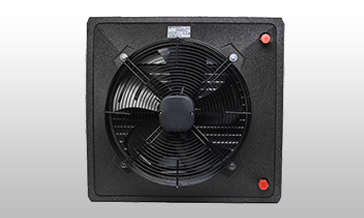

  • 1-stage fan with the protection degree IP 65
  • Power range from 7,01 kW up to 66,2 kW
  • Modern design
  • Endurance
  • High efficiency
  • Easy assembly
  • 24-months warranty

Technical data:

Parameters: Unit of measure: FARMER HCF IP65
Nominal heating capacity kW* 3 stage - 50,2
2 stage - N/A
1 stage - N/A
Heating capacity range kW 7,01 - 66,2***
Maximum airflow m3/h 3 stage - 5 000
2 stage - N/A
1 stage - N/A
Maximum horizontal range m 23
Number of rows бр. 2
Capacity of water dm3 1,95
Maximum temperature of working fluid °C 120
Maximum working pressure MPa 1,6
Connection diameter " 3/4
Power supply / frequency V/Hz 230/50
Rated motor current A 3 stage - 2
2 stage - N/A
1 stage - N/A
Motor power W 3 stage - 470
2 stage - N/A
1 stage - N/A
Motor speed Rev/min 3 stage - 1 380
2 stage - N/A
1 stage - N/A
Protection degree IP 65
Net weight kg 19,5
Noise dB**** 3 stage - 63
2 stage - N/A
1 stage - N/A

N/A Not applicable; * For parameters 90/70°C and 0°C inlet; *** Max 120/90°C, 0°C inlet // min 40/30°C, 20°C inlet; **** Measurement at a distance 5m;

Dimensions:

Type: а
[mm]		 b
[mm]		 c
[mm]
Farmer HCF IP54-3S 698 739 360
Farmer HCF IP65 698 739 430











Application:

Production halls for food industry, pigsties, rooms with high dustiness, humidity and ammonia in the air.
