| Price
BAVG |
RAS10PAVSG-E/PKV-SG-E | RAS13PAVSG-E/PKV-SG-E | RAS16PAVSG-E/PKV-SG-E | RAS18PAVSG-E/PKV-SG-E | RAS22PAVSG-E/PKV-SG-E | RAS24PAVSG-E/PKV-SG-E |
|---|---|---|---|---|---|---|
| All prices are inclided VAT and excluded installation costs. BGN |
1 420,00 | 1 630,00 | 1 920,00 | 2 120,00 | 2 450,00 | 2 650,00 |
All prices are inclided VAT and excluded installation costs.
| Efficiency data
BAVG |
RAS10PAVSG-E/PKV-SG-E | RAS13PAVSG-E/PKV-SG-E | RAS16PAVSG-E/PKV-SG-E | RAS18PAVSG-E/PKV-SG-E | RAS22PAVSG-E/PKV-SG-E | RAS24PAVSG-E/PKV-SG-E | ||
|---|---|---|---|---|---|---|---|---|
| Cooling capacity Min./Nom./Max. kW |
2,5 (0,75-3,2) | 3,5 (0,8-4,1) | 4,6 (1,2-5,3) | 5,0 (1,1-6,0) | 6,1 (1,2-6,7) | 7,0 (1,5-7,7) | ||
| Heating capacity Min./Nom./Max. kW |
3,2 (0,9-4,8) | 4,2 (0,9-5,3) | 5,5 (0,9-6,5) | 6,0 (0,8-6,5) | 7,0 (1,0-7,5) | 8,0 (1,6-8,5) | ||
| Seasonal efficiency (сaccording to EN14825) |
Cooling | Energy efficiency class | A++ | A++ | A++ | A++ | A++ | A++ |
| SEER | 6,9 | 6,5 | 6,5 | 7,3 | 6,8 | 6,2 | ||
| Seasonal electricity consumption kWh |
127 | 189 | 248 | 240 | 314 | 392 | ||
| Heating (Average climate) | Energy efficiency class | A++ | A++ | A+ | A+ | A+ | A+ | |
| SCOP/A | 4,6 | 4,6 | 4,2 | 4,4 | 4,4 | 4,0 | ||
| Seasonal electricity consumption kWh |
761 | 974 | 1 335 | 1 368 | 1 495 | 2 166 | ||
|

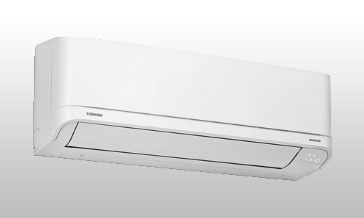

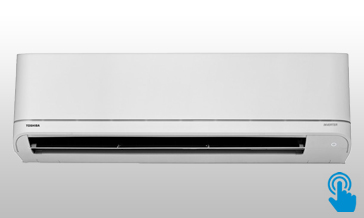

Technical data - Indoor unit BAVG |
RAS10PKVSG-E | RAS13PKVSG-E | RAS16PKVSG-E | RAS18PKVSG-E | RAS22PKVSG-E | RAS24PKVSG-E | ||
|---|---|---|---|---|---|---|---|---|
| Dimensions | Unit (HeightxWidthxDepth) |
mm |
293x798x230 | 293x798x230 | 293x798x230 | 320x1050x250 | 320x1050x250 | 320x1050x250 |
| Air filter | Type |
|
IAQ filter | IAQ filter | IAQ filter | IAQ filter | IAQ filter | IAQ filter |
| Sound pressure level | Cooling / Heating |
dBA |
38/23 39/24 |
39/23 39/24 |
43/25 43/26 |
44/31 44/31 |
45/34 46/34 |
37/35 48/35 |
|
Technical data - Outdoor unit BAVG |
RAS10PAVSG-E | RAS13PAVSG-E | RAS16PAVSG-E | RAS18PAVSG-E | RAS22PAVSG-E | RAS24PAVSG-E | |||
|---|---|---|---|---|---|---|---|---|---|
| Dimensions | Unit (HeightxWidthxDepth) |
mm |
550x780x290 | 550x780x290 | 550x780x290 | 550x780x290 | 630x800x300 | 550x780x290 | |
| Sound pressure level | Cooling / Heating |
dBA |
46/47 | 48/50 | 49/52 | 49/50 | 53/52 | 53/53 | |
| Operation range | Cooling (Ambient Min.~Max.) |
°CDB |
-15~46 | -15~46 | -15~46 | -15~46 | -15~46 | -15~46 | |
| Heating (Ambient Min.~Max.) |
°CWB |
-15~46 | -15~46 | -15~46 | -15~46 | -15~46 | -15~46 | ||
| Refrigerant | Type | R-32 | R-32 | R-32 | R-32 | R-32 | R-32 | ||
