| Price FTXM + RXM |
20N + 20N9 | 25N + 25N9 | 35N + 35N9 | 42N + 42N9 | 50N + 50N9 | 60N + 60N9 | 71N + 71N |
|---|---|---|---|---|---|---|---|

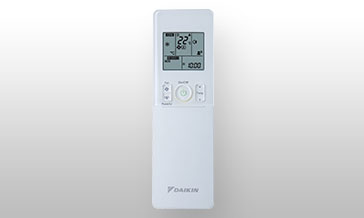

| Unit price (indoor unit + outdoor unit + remote control)
BGN |
2.127,- | 2.271,- | 2.540,- | 3.257,- | 3.809,- | 4.148,- | 5.363,- |
All prices are inclided VAT and excluded installation costs.
| Efficiency data FTXM + RXM |
20N + 20N9 | 25N + 25N9 | 35N + 35N9 | 42N + 42N9 | 50N + 50N9 | 60N + 60N9 | 71N + 71N | ||
|---|---|---|---|---|---|---|---|---|---|
| Cooling capacity Min./Nom./Max. kW |
1,3/2,0/2,6 | 1,3/2,5/3,2 | 1,4/3,4/4,0 | 1,7/4,2/5,0 | 1,7/5,0/6 | 1,7/6,0/6,7 | 2,3/7,1/8,5 | ||
| Heating capacity Min./Nom./Max. kW |
1,3/2,5/3,5 | 1,3/2,8/4,7 | 1,4/4,0/5,2 | 1,7/5,4/6,0 | 1,7/5,8/7,7 | 1,7/7,0/8,0 | 2,3/8,2/1,2 | ||
| Seasonal efficiency (сaccording to EN14825) |
Cooling | Energy efficiency class | A+++ | A+++ | A+++ | A++ | A++ | A++ | A++ |
| SEER | 8,65 | 8,65 | 8,65 | 7,85 | 7,41 | 6,90 | 6,2 | ||
| Annual energy consumption kWh |
81 | 101 | 137 | 187 | 236 | 304 | 401 | ||
| Heating (Average climate) | Energy efficiency class | A+++ | A+++ | A+++ | A++ | A++ | A+ | A+ | |
| SCOP/A | 5,10 | 5,10 | 5,10 | 4,71 | 4,71 | 4,30 | 4,1 | ||
| Annual energy consumption kWh |
631 | 659 | 686 | 1.189 | 1.369 | 1.562 | 2.115 | ||

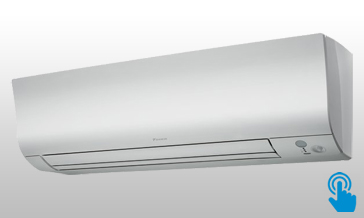

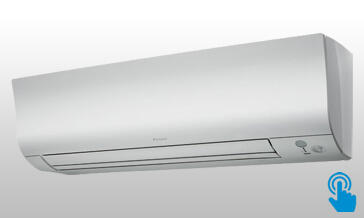

| Technical data - Indoor unit FTXM |
20N | 25N | 35N | 42N | 50N | 60N | 71N | ||
|---|---|---|---|---|---|---|---|---|---|
| Dimensions | Unit (HeightxWidthxDepth) |
mm |
295x778x272 | 295x778x272 | 295x778x272 | 295x778x272 | 299x998x292 | 299x998x292 | 299x998x292 |
| Air filter | Type |
|
Removable / washable | Removable / washable | Removable / washable | Removable / washable | Removable / washable | Removable / washable | Removable / washable |
| Sound pressure level | Cooling / Heating |
dBA |
19/25/41 20/26/39 |
19/25/41 20/27/39 |
19/29/45 20/28/39 |
21/30/45 21/29/45 |
27/36/44 31/34/43 |
30/37/46 33/36/45 |
32/38/47 34/37/46 |
| Technical data - Outdoor unit RXM |
20N9 | 25N9 | 35N9 | 42N9 | 50N9 | 60N9 | 71N | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | Unit (HeightxWidthxDepth) |
mm |
550x765x285 | 550x765x285 | 550x765x285 | 734x870x373 | 734x870x373 | 734x870x373 | 734x954x401 | |
| Sound pressure level | Cooling / Heating |
dBA |
46 47 |
46 47 |
49 49 |
48 48 |
48 49 |
48 49 |
47 48 |
|
| Operation range | Cooling (Ambient Min.~Max.) |
°CDB |
-10~50 | -10~50 | -10~50 | -10~50 | -10~50 | -10~50 | -10~46 | |
| Heating (Ambient Min.~Max.) |
°CWB |
-20~24 | -20~24 | -20~24 | -20~24 | -20~24 | -20~24 | -15~24 | ||
| Refrigerant | *Type/Charge kg-TCO₂Eq/GWP | R-32/0,76/ 0,52/675 |
R-32/0,76/ 0,52/675 |
R-32/0,76/ 0,52/675 |
R-32/1,10/ 0,75/675 |
R-32/1,15/ 0,78/675 |
R-32/1,15/ 0,78/675 |
R-32/1,15/ 0,78/675 |
||
