Series LMC

Advantages:

  • High performance and compact design.
  • More comfortable airflow.
  • Powerful mode of operation in heating or cooling mode.
  • 2 programming options (Day, Sleep).
  • Function 10°C heating to reduce power consumption.
  • Function to reduce the noise of the outdoor unit with 3dB.
  • Working in heating mode at -15°C.
  • High efficiency and comfort design.



Price

ASHG-LMCА / AOHG-LMCA

 07LMCA 09LMCA 12LMCA 14LMCA
All prices are inclided VAT and excluded installation costs.

BGN

 1 059.00 1 149.00 1 249.00 1 779.00

All prices are inclided VAT and excluded installation costs.

Technical data:

Efficiency data

ASHG-LMCА / AOHG-LMCA

 07LMCA 09LMCA 12LMCA 14LMCA
Cooling capacity Min./Nom./Max.

kW

 2.0 (0.5 - 3.0) 2.5 (0.5 - 3.2) 3.4 (0.9 - 3.9) 4.0 (0.9 - 4.3)
Heating capacity Min./Nom./Max.

kW

 3.0 (0.5 - 3.4) 3.2 (0.5 - 4.0) 4.0 (0.9 - 5.3) 5.0 (0.9 - 6.0)
Seasonal efficiency
(сaccording to EN14825)		 Cooling Energy efficiency class A++ A++ A++ A++
SEER 6.80 7.00 7.00 6.90
Annual energy consumption

kWh

 103 125 170 203
Heating (Average climate) Energy efficiency class A+ A+ A+ A+
SCOP/A 4.10 4.10 4.00 4.00
Annual energy consumption

kWh

 786 820 1225 1365

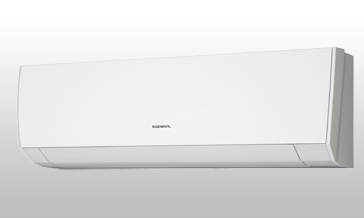

Technical data - Indoor unit

ASHG-LMCА

 07LMCA 09LMCA 12LMCA 14LMCA
Dimensions Unit (HeightxWidthxDepth)

mm

 268x840x203 268x840x203 268x840x203 268x840x203
Weight Indor/Outdoor

kg

 8.5/21 8.5/21 8.5/26 8.5/34
Sound pressure level  Cooling / Heating

dBA

 43/40/32/21
43/38/33/22		 43/40/32/21
43/38/33/22		 43/40/32/21
43/38/33/22		 44/40/33/25
44/40/35/27

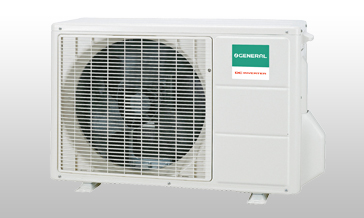

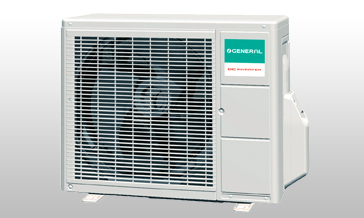

Technical data - Outdoor unit

AOHG-LMCA

 07LMCA 09LMCA 12LMCA 14LMCA
Dimensions Unit (HeightxWidthxDepth)

mm

 535x663x293 535x663x293 535x663x293 540x790x290
Sound pressure level  Cooling / Heating

dBA

 45/45 45/45 50/50 50/50
Operation range Cooling
(Ambient Min.~Max.)

°CDB

 -10~43 -10~43 -10~43 -10~43
Heating
(Ambient Min.~Max.)

°CWB

 -15~24 -15~24 -15~24 -15~24
Refrigerant *Type/Charge kg-TCO₂Eq/GWP R410A/0,70/2,088 R410A/0,70/2,088 R410A/0,85/2,088 R410A/1,05/2,088



Funcitons:

  1. Economy operation
    Economy operation is energy saving, as the set temperature of indoor unit is shifted by 1°C and the maximum electric value of the outdoor unit is suppressed.
  2. Powerful operation
    20 minutes continuous operation by maximum airflow and maximum compressor speed is possible. Rapid cooling and heating makes the room comfortable quickly.
  3. 10°C HEAT Operation
    The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.
  4. Automatic mode change
    Climate systems automatically change operating modes (between heating and cooling) depending on the set temperature and room temperature.
  5. Adjust flaps up / down
    The valves can automatically move up and down.
  6. Automatic fan speed
    The microcomputer automatically adjusts the airflow to effectively follow the changes in room temperature.
  7. Automatic restart
    In the event of a temporary power outage, the air conditioner will automatically restart in the previous mode once it is restored power supply.
  8. Sleep timer
    The sleep timer function automatically corrects the temperature thermostat setting according to the time setting to prevent excessive cooling or heating while sleeping.
  9. Program timer
    The program timer operates the on and off timer once within a 24-hour period
  10. Weekly timer
    Temperatures can be set for two time periods and for each day of the week.
  11. Filter indicator
    Indicates the need to clean the filter with a light indicator.
  12. Ion-deodorizing filter with long service life
    The filter works by efficiently decomposing the odor deposited and bringing into effect the oxidative and slimming effects of the ions generated by the ceramic with superfine particles.
  13. Apple-catechin filter
    Fine powder, invisible mold spores and harmful microorganisms are absorbed by the filter by static electricity, and their further build-up is prevented by apple-derived polyphenol.
  14. Washable panel
    Because the front panel is easy to remove, maintenance is also easy.
