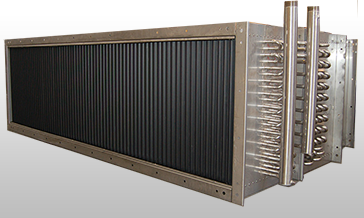

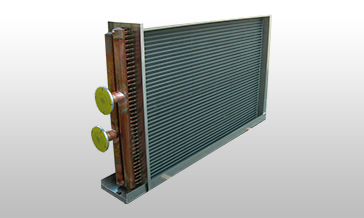

Fin coil heat exchangers with the following technical characteristics of the main components are available. It is possible to perform heat exchanger on a customer`s request outside of the basic technical specifications.
| Part | Material | ||
|---|---|---|---|
| Exchange tubes | Stainless steel (AISI304L, AISI316L, AISI316Ti) Steel Copper (CuSn, CuNi10, CuNi30) Aluminum |
||
| Fins | Stainless steel (AISI304L, AISI316L, AISI316Ti) Copper (CuSn) Aluminum (Hydrophilic alum., Prepain alum., AlMg2,5) Epoxy coating |
||
| Frame | Stainless steel (AISI304L, AISI316L, AISI316Ti) Copper Aluminum Brass |
||
Geometry
| Fins | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Available fin pitches (mm) | ||||||||||||||||
| 1,5 | 1,6 | 1,8 | 2,1 | 2,5 | 2,8 | 3,0 | 3,2 | 3,6 | 4,0 | 4,2 | 5,0 | 6,0 | 7,0 | 8,0 | 10,0 | 12,0 |
| Tubes | ||||||||
|---|---|---|---|---|---|---|---|---|
| Thickness (mm) | ||||||||
| 0,11 | 0,13 | 0,35 | 0,4 | 0,5 | 0,6 | 0,7 | 1,0 | 1,5 |
Tube external diameter from 7 mm to 22 mm.
This wide range of parameters available gives ability freely to choose fin pitches, tube diameter and configuration, according with project requirements.
