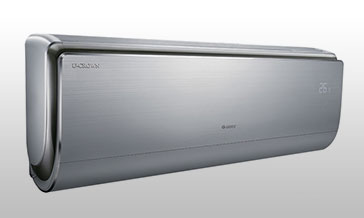

Series U-CROWN

Advantages:

  • G10 inverter (minimum rotation speed 15Hz) with two-stage compressor;
  • Colors of the panel: silver and champagne;
  • Cooling: -18°C~+43°С, Heating: -30°C~+24°C;
  • Built in Wi-Fi adapter and software for Android and iOS;
  • Controlling element: Electronic TRV;
  • Timer;;
  • Warm start;
  • Self-diagnosis;
  • Indoor unit`s seven steps fan;



Price GWH09UB-K3DNA4F GWH12UB-K3DNA4F GWH18UC-K3DNA4F
Unit price (indoor unit + outdoor unit + remote control)

BGN

2 252,00 2 307,00 2 417,00

All prices are inclided VAT and excluded installation costs.

Technical data:

Efficiency data GWH09UB-K3DNA4F GWH12UB-K3DNA4F GWH18UC-K3DNA4F
Cooling capacity Min./Nom./Max.

kW

2.6 (0.39 – 4.0) 3.50 (0.39 – 4.45) 5.28 (0.9 – 5.75)
Heating capacity Min./Nom./Max.

kW

3.0 (0.56 – 4.8) 3.60 (0.56 – 5.4) 5.28 (0.75 – 7.25)
Seasonal efficiency
(сaccording to EN14825)
Cooling Energy efficiency class A+++ A+++ A++
SEER 7,5 7,0 6,1
Annual energy consumption

kWh

- - -
Heating (Average climate) Energy efficiency class A++ A++ A+
SCOP/A 4,6 4,6 4,0
Annual energy consumption

kWh

- - -
Technical data - Indoor unit GWH09UB GWH12UB GWH18UC
Dimensions Unit (HeightxWidthxDepth)

mm

860x305x170 860x305x170 960x320x205
Weight Indor/Outdoor

kg

11,5/44,5 11,5/44,5 14/51
Sound pressure level  Cooling / Heating

dBA

41/37/35/33/30/22/19 43/38/36/34/31/23/20 46/42/40/36/33/25/22
Technical data - Outdoor unit GWH09UB GWH12UB GWH18UC
Dimensions Unit (HeightxWidthxDepth)

mm

899x596x378 899x596x378 950x700x396
Sound pressure level  Cooling / Heating

dBA

50 52 56
Operation range Cooling
(Ambient Min.~Max.)

°CDB

-18~54 -18~54 -18~54
Heating
(Ambient Min.~Max.)

°CWB

-30~54 -30~54 -30~54
Refrigerant *Type R-410A R-410A R-410A



Funcitons:

  1. SI-Feel (temperature sensor in the remote control);
  2. Automatic restart during braking and subsequent restoration of the power supply;
  3. Intelligent Defrost System;
  4. 3D airflow (three valves - two horizontally and one vertical);
  5. Three row Heat Exchanger at the outdoor unit;
  6. Temperature control over 0.5 ° C;
  7. Minimum noise level 18 dB;
  8. Force Defrosting;
  9. Automatically direct vertical airflow;
