Series SUPER DAISEKAI 8

Advantages:

  • High energy efficiency class, both in cooling and heating (A+++ for sizes 10 & 13);
  • Improved airflow features
  • Plazma ION - super ionizer with possibility to enhancehumidity in air.;
  • New Air Purifier - impurities are ionized by the plasma ion charger and absorbed by heat exchanger;
  • Wide operating range;

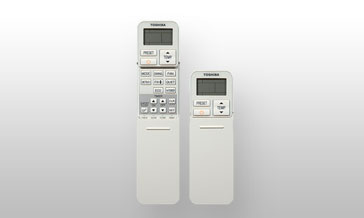

  • Weekly timer with 4 freely programmable settings per day and 7 different programs per week (standard).;



Price

BAVG

RAS-10G2AVP/RAS-10G2KVP RAS-13G2AVP/RAS-13G2KVP RAS-16G2AVP/RAS-16G2KVP
All prices are inclided VAT and excluded installation costs.

BGN

2 480,00 2 630,00 3 200,00

All prices are inclided VAT and excluded installation costs.

Technical:

Efficiency data

BAVG

RAS-10G2AVP/RAS-10G2KVP RAS-13G2AVP/RAS-13G2KVP RAS-16G2AVP/RAS-16G2KVP
Cooling capacity Min./Nom./Max.

kW

2,5 (0,55-3,5) 3,5 (0,63-4,1) 4,5 (0,63-5,0)
Heating capacity Min./Nom./Max.

kW

3,2 (0,45-5,8) 4,0 (0,65-6,3) 5,5 (0,65-6,8)
Seasonal efficiency
(сaccording to EN14825)
Cooling Energy efficiency class A+++ A+++ A++
SEER 9,1 8,9 7,3
Seasonal electricity consumption

kWh

96 138 216
Heating (Average climate) Energy efficiency class A+++ A+++ A++
SCOP/A 5,2 5,1 4,6
Seasonal electricity consumption

kWh

808 988 1 369

Technical data - Indoor unit

BAVG

RAS-10G2KVP-E RAS-13G2KVP-E RAS-16G2KVP-E
Dimensions Unit (HeightxWidthxDepth)

mm

293x831x270 293x831x270 293x831x270
Air filter Type



Plazma ION/Charger Plazma ION/Charger Plazma ION/Charger
Sound pressure level Cooling / Heating

dBA

42/24 (20)
43/24 (20)
43/25 (21)
44/25 (21)
44/26 (23)
45/26 (23)

Technical data - Outdoor unit

BAVG

RAS-10G2AVP-E RAS-13G2AVP-Е RAS-16G2AVP-Е
Dimensions Unit (HeightxWidthxDepth)

mm

630x800x300 630x800x300 630x800x300
Sound pressure level Cooling / Heating

dBA

46/47 48/49 49/50
Operation range Cooling
(Ambient Min.~Max.)

°CDB

-10~46 -10~46 -10~46
Heating
(Ambient Min.~Max.)

°CWB

-15~24 -15~24 -15~24
Refrigerant Type R-410A R-410A R-410A



Funcitons:

  1. Automatic re-start
    In case of temporarily power supply outage, the unit will resume the operating conditions.
  2. Quiet
    By pressing the "quiet" button on the remote control, the units will start an extremely silent operation mode.
  3. Weekly times
    The Toshiba heat pump can be programed with up to 4 different settings within a day and 7 different programs in a week.
  4. Hi Power
    This mode cool the room faster during operation keeping low noise levels.
  5. Stand By Watts
    Automatically enter energy-saving mode when standby. Cut energy consumption up to 0,5 W per hour.
  6. Auto diagnosis
    The system will perform a thorough internal check and will signal eventual anomalies.
  7. One touch my comfort
    Pre-programmed settings studied by Toshiba technicians in order to offer the right combination of comfort and energy savings.
  8. Wi Fi Module
    Toshiba unit’s can be controlled at anytime and form anywhere, thanks to tis Wi Fi module that offers maximum wellbeing and optimized energy saving.
  9. Low Ambient kit
    With build in low ambient kit and special designed PCB, outdoor fan speed can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature down to -15oC.
  10. ECO
    Raises / lowers temperature automatically to prevent excessive cooling and also excessive electricity cost.
  11. Self Cleaning
    Automatic operation designed to reduce the humidity which may cause mould formation on the wet parts inside the indoor unit.
  12. Comfort Sleep
    The unit will automatically adjust the temperature settings to create the best comfort levels in the sleeping hours.
