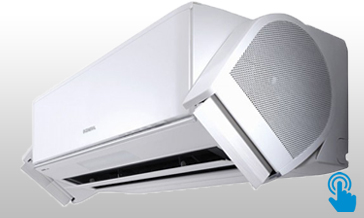

Series NOCRIA

Advantages:

  • High efficiency
  • Improved airflow with additional side louvres DUAL BLASTER
  • Powerful mode of operation in heating or cooling mode
  • 3 programming options (Day, Week, Sun)
  • Human Sensor
  • Plasma filter
  • Automatically cleanable filter
  • Working in heating mode at - 20 ° C
  • Operation in cooling mode at - 5 ° C



Price

ASHG-KXCА / AOHG-KXCA

09KXCA 12KXCA
All prices are inclided VAT and excluded installation costs.

BGN

4 300.00 4 700.00

All prices are inclided VAT and excluded installation costs.

Technical data:

Efficiency data

ASHG-KXCА / AOHG-KXCA

09KXCA 12KXCA
Cooling capacity Min./Nom./Max.

kW

2.5(0.6-3.5) 3.4(0.6-5.3)
Heating capacity Min./Nom./Max.

kW

3.6(0.6-7.1) 5.0(0.6-9.0)
Seasonal efficiency
(сaccording to EN14825)
Cooling Energy efficiency class A+++ A+++
SEER 8.5 8.5
Annual energy consumption

kWh

103 140
Heating (Average climate) Energy efficiency class A+++ A+++
SCOP/A 5.1 5.1
Annual energy consumption

kWh

934 961

Technical data - Indoor unit

ASHG-KXCА

ASHG09KXCA ASHG12KXCA
Dimensions Unit (HeightxWidthxDepth)

mm

293×786×378 293×786×378
Weight Indor/Outdoor

kg

20/41 20/41
Sound pressure level  Cooling / Heating

dBA

46/28 46/28

Technical data - Outdoor unit

AOHG-KXCA

AOHG09KXCA AOHG12KXCA
Dimensions Unit (HeightxWidthxDepth)

mm

704×820×315 704×820×315
Sound pressure level  Cooling / Heating

dBA

41/40 44/43
Operation range Cooling
(Ambient Min.~Max.)

°CDB

-10~43 -10~43
Heating
(Ambient Min.~Max.)

°CWB

-15~24 -15~24
Refrigerant *Type/Charge kg-TCO₂Eq/GWP R32/1,30/675 R32/1,30/675

Note: Specifications are based on the following conditions:
Cooling: Internal temperature 27 ° CDB / 19 ° CWB, outside temperature 35 ° CDB / 24 ° CWB
Heating: Indoor temperature 20 ° CDB / 15 ° CWB, outdoor temperature 7 ° CDB / 6 ° CWB

Funcitons:

  1. Double side fans
    Comfortable space can be created by the hybrid airflow that combines different airflow temperatures and speeds.
  2. Human Sensor
    The presence sensor captures the movement of people in the room and evaluates the power saving mode.
  3. Economy mode
    The thermostat settings automatically change depending on the temperature to avoid unnecessary cooling or heating.
  4. Powerful mode
    Working with maximum airflow and compressor speed allows you to quickly reach room comfort.
  5. 10°C HEAT Operation
    The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.
  6. Quiet operation mode
    You can select noise levels of the outdoor unit.
  7. Automatic switching
    The appliance automatically switches from heating mode to cooling mode and back on the basis of the temperature setting and room temperature.
  8. Double auto swing
    Combination of up/down and right/left air direction swing allows three-dimensional air direction control.
  9. Automatic fan speed
    The microcomputer automatically adjusts the air flow to effectively follow the changes in room temperature.
  10. Automatic restart
    In the event of a temporary power outage, the air conditioner will automatically restart in the previous mode once it is restored power supply.
  11. Sleep timer
    The sleep timer function automatically corrects the temperature thermostat setting according to the time setting to prevent excessive cooling and heating while sleeping.
  12. Built-in timers
    Select from four different timer programs (ON / OFF / PROGRAM / SLEEP).
  13. Wireless LAN control
    The optional Wi-Fi adapter lets you control the air conditioner via a smartphone, tablet or outside.
  14. Plasma air filter
    Electrostatic dust extractor removes dust particles such as pollen and household dust. It can be washed and cleaned.
  15. Automatic filter cleaning
    The dust is removed automatically from the filter. It is only necessary to periodically dispose of the powder contained in the container.
