Series MIDDLE CLASS

Advantages:

  • Inverter, color - white, EEV, Wi-Fi-preparation
  • Very high SEER / SCOP
  • Very high power
  • Made in Malaysia
  • "Heating": up to -15оС
  • "Cooling": up to -10 ° C
  • "Quiet" mode 20 dBa - only 9 and 12
  • "Powerful" mode
  • 5 speed internal fan



Price CS/CU-TZ9SKE CS/CU-TZ12SKE
All prices are inclided VAT and excluded installation costs.

BGN

1 300,00 1 400,00

All prices are inclided VAT and excluded installation costs.

Technical data:

Efficiency data CS/CU-TZ9SKE CS/CU-TZ12SKE
Cooling capacity Min./Nom./Max.

kW

2,5 (0,85-3,0) 3,5 (0,85-3,9)
Heating capacity Min./Nom./Max.

kW

3,3 (0,8-4,1) 4,0 (0,8-5,1)
Seasonal efficiency
(сaccording to EN14825)
Cooling Energy efficiency class A++ A++
SEER 6,2 6,2
Annual energy consumption

kWh

- -
Heating (Average climate) Energy efficiency class A+ A+
SCOP/A 4,2 4,2
Annual energy consumption

kWh

- -

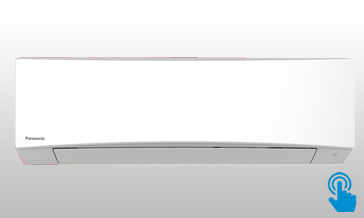

Technical data - Indoor unit CS/CU-TZ9SKE CS/CU-TZ12SKE
Dimensions Unit (HeightxWidthxDepth)

mm

290/870/204 290/870/204
Air filter



PM2 PM2
Sound pressure level  Cooling / Heating

dBA

20/40 20/42

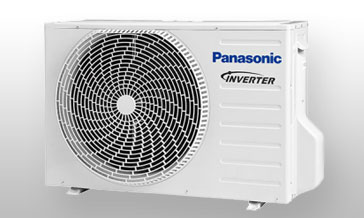

Technical data - Outdoor unit CS/CU-TZ9SKE CS/CU-TZ12SKE
Dimensions Unit (HeightxWidthxDepth)

mm

- -
Sound pressure level  Cooling / Heating

dBA

- -
Operation range Cooling
(Ambient Min.~Max.)

°CDB

-10~- -10~-
Heating
(Ambient Min.~Max.)

°CWB

-15~- -15~-
Refrigerant *Type R32 R32



Funcitons:

  1. "Hot Start"
  2. "AUTO Restart"
  3. "AUTO Comfort"
  4. 24h timer

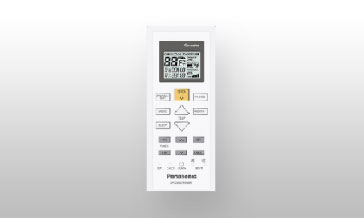

  5. Wire remote control - option
