Series KE

Advantages:

  • Inverter with new modern design.
  • High energy saving – SEER 7,4 W/W A++, SCOP 4,1 W/W A+.
  • Comfortable airflow and silent operation.
  • Low ambient operation.
  • Smart device Control (option).









Price

ASHG-KETA / AOHG-KETA (B)

07KE 09KE 12KE 14KE
Unit price (indoor unit + outdoor unit + remote control) KETA

BGN

1 279 1 389 1 599 1 999
Unit price (indoor unit + outdoor unit + remote control) KETA-B

BGN

1 329 1 439 1 649 2 049

All prices are inclided VAT and excluded installation costs.

Technical data:

Efficiency data

ASHG-KETA / AOHG-KETA (B)

07KE 09KE 12KE 14KE
Cooling capacity Min./Nom./Max.

kW

2,0 (0,9-3,0) 2,5 (0,9-3,2) 3,4(0,9-3,9) 4,2 (0,9-4,4)
Heating capacity Min./Nom./Max.

kW

2,5 (0,9-3,4) 2,8(0,9-4,0) 4,0 (0,9-5,3) 5,4 (0,9-6,0)
Seasonal efficiency
(according to EN14825)
Cooling Energy efficiency class A++ A++ A++ A++
SEER 7.40 7.40 7.30 6.90
Annual energy consumption

kWh

95 - - -
Heating (Average climate) Energy efficiency class A+ A+ A+ A+
SCOP/A 4.10 4.10 4.40 4.10
Annual energy consumption

kWh

785 - - -

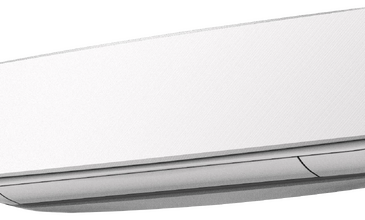

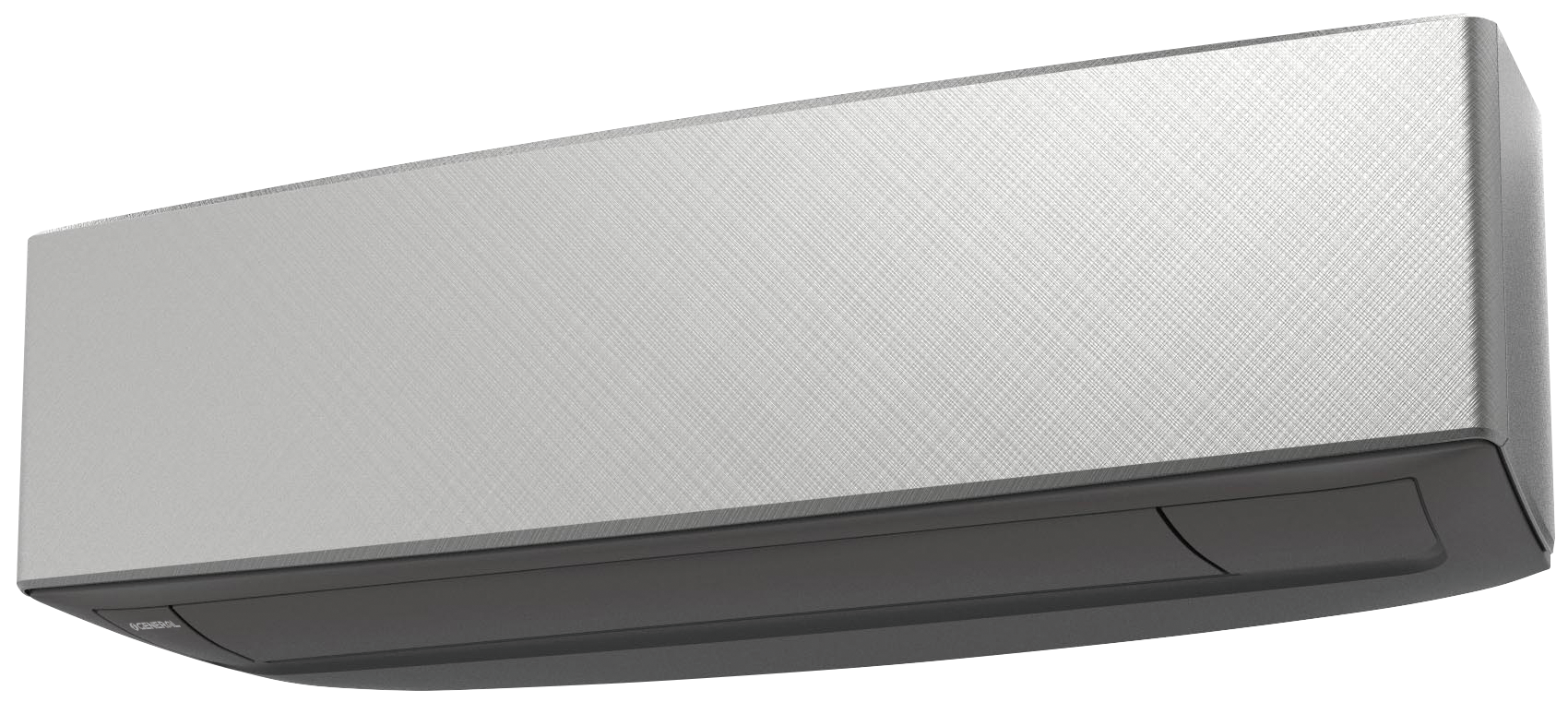

Technical data - Indoor unit

ASHG-KETA / ASHG-KETA-B

07KE 09KE 12KE 14KE
Dimensions Unit (HeightxWidthxDepth)

mm

295x950x230 295x950x230 295x950x230 295x950x230
Weight Indor / Outdoor

 kg

11/23 11/23 11/25 11.5/31
Sound pressure level Cooling / Heating

dBA

38/33/29/21
41/35/31/22
40/34/29/21
42/36/31/22
40/35/30/21
42/38/33/22
43/36/30/21
44/39/33/24
Technical data - Outdoor unit

AOHG-KETA / AOHG-KETA-B

07KE 09KE 12KE 14KE
Dimensions Unit (HeightxWidthxDepth)

mm

541x663x290 620×790×290 620×790×290 542x799x290
Sound pressure level Cooling / Heating

dBA

46 46 50 50
Operation range Cooling
(Ambient Min.~Max.)

°CDB

-10~46 -10~46 -10~46 -10~46
Heating
(Ambient Min.~Max.)

°CWB

-15~24 -15~24 -15~24 -15~24
Refrigerant Type R32 R32 R32 R32

Functions:

  1. Economy mode
    Thermostat setting automatically changes according to the temperature to avoid unnecessary cooling and heating.
  2. Room temperature set point limitation
    The minimum and maximum temperature range can be set giving further energy saving while considering the comfort of the occupants.
  3. Set temperature auto return
    The setting temperature automatically returns to the previously set temperature.
  4. Powerful mode
    Operation at maximum air flow and compressor speed, and quickly makes the room comfortable.
  5. 10°C HEAT operation
    The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.
  6. Low noise mode
    Sound noise level of outdoor unit can be selected.
  7. Auto-changeover
    The unit automatically switches between heating and cooling modes based on your temperature setting and the room temperature.
  8. Up/down swing flaps
    The up/down flaps automatically swing up and down.
  9. Double swing automatic
    Complex swing action of flaps enables automatically to swing both horizontal and vertical directions.
  10. Automatic fan speed
    The micro-computer automatically adjusts the airflow effectively to follow the changes of room temperature.
  11. Auto restart
    In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once power supply is restored.
  12. Auto off timer (option)
    Automatically stops operation when a fixed time has elapsed from the start of operation
  13. Sleep timer
    The micro-computer gradually changes the room temperature automatically to afford a comfortable night's sleep.
  14. Program timer
    This digital timer allows selection of one of four options: ON, OFF, ON » OFF or OFF » ON.
  15. Weekly timer
    Different ON-OFF times can be set for each day
  16. Weekly + setback timer (option)
    Weekly + Setback timer can set temperature for two times spans and for each day of the week.
  17. Filter sign
    Показва чрез лампа периода за почистване на филътра.
  18. External error output (option)
  19. External ON/OFF input (option)

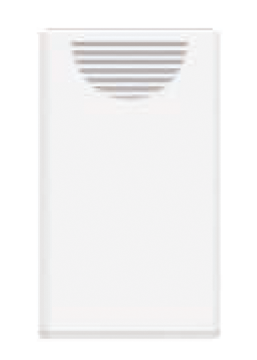

  20. Wireless LAN control (option)
    The exclusive Wireless LAN adaptor enables to operate the air conditioner by smartphone or tablet PC from outside.
  21. Ion deodorization filter
    The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by the ultrafine-particle ceramic.
  22. Apple-catechin filter
    The Apple-catechin filter uses static electricity to clean fine particles and dust in the air.
  23. Washable panel
    Since the front panel is easy to remove, maintenance is also easy.
  24. All DC models
  25. Refrigerant R32
