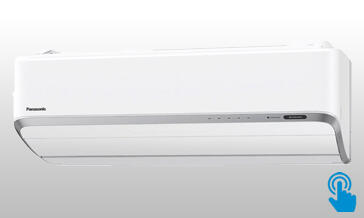

Series HEATCHARGE

Advantages:

  • E-ION-PLUS, EEV, Wi-Fi training, Nano-E-air fresheners
  • Very high power, ultra high SEER / SCOP
  • "Heating": up to -30оС - without turning on defrost, "Cooling": up to -10оС
  • Quiet mode 18 dBa - only 9 and 12, "Powerful"
  • "Econavi" - light and motion sensors
  • 24h timer
  • 5 speed internal fan
  • Made in Japan



Price CS/CU-VZ9SKE CS/CU-VZ12SKE
All prices are inclided VAT and excluded installation costs.

BGN

5 100,00 5 900,00

All prices are inclided VAT and excluded installation costs.

Technical data:

Efficiency data CS/CU-VZ9SKE CS/CU-VZ12SKE
Cooling capacity Min./Nom./Max.

kW

2,5 (0,6-3,0) 3,5 (0,6-4,0)
Heating capacity Min./Nom./Max.

kW

3,6 (0,6-7,9) 4,2 (0,63-9,2)
Seasonal efficiency
(сaccording to EN14825)
Cooling Energy efficiency class A+++ A+++
SEER 10,5 10,0
Annual energy consumption

kWh

- -
Heating (Average climate) Energy efficiency class A+++ A+++
SCOP/A 6,2 5,9
Annual energy consumption

kWh

- -
Technical data - Indoor unit CS/CU-VZ9SKE CS/CU-VZ12SKE
Dimensions Unit (HeightxWidthxDepth)

mm

295/798/375 295/798/375
Air filter



- -
Sound pressure level  Cooling / Heating

dBA

18/44 18/45
Technical data - Outdoor unit CS/CU-VZ9SKE CS/CU-VZ12SKE
Dimensions Unit (HeightxWidthxDepth)

mm

- -
Sound pressure level  Cooling / Heating

dBA

- -
Operation range Cooling
(Ambient Min.~Max.)

°CDB

-10~- -10~-
Heating
(Ambient Min.~Max.)

°CWB

-30~- -30~-
Refrigerant *Type R32 R32



Funcitons:

  1. Adjustment of 4-way valves on the remote control
  2. 2 flaps
  3. "Auto Restart"
  4. "AUTO Comfort"
  5. Wire remote control - option
