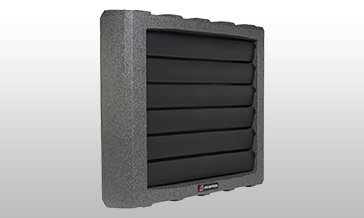

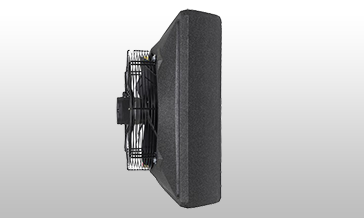

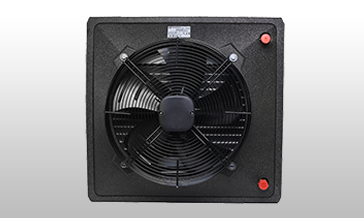

Series HC30

Advantages

  • Casing made from expanded polypropylene
  • Modern design
  • Power range 1,8 - 34,9 kW
  • 3-stage fans HC30-3S
  • 1-stage, three-phase fans HC3P-30
  • Endurance
  • High-performance
  • Protection degree IP 54
  • ErP 2015
  • 24-months warranty

Technical data:

Parameters: Unit of measure: HC30-3S HC3P 30
Nominal heating capacity kW* 3 stage - 26,4 26,4
2 stage  - 20,3
1 stage - 15,5
Heating capacity range kW** 1,8 - 34,9 2,84 - 34,9
Maximum airflow m3/h 3 stage - 3 100 3 100
2 stage - 1 950
1 stage - 1 250
Maximum horizontal range m 18 18
Number of rows бр. 1 1
Capacity of water dm3 0,8 0,8
Maximum temperature of working fluid °C 120 120
Maximum working pressure MPa 1,6 1,6
Connection diameter " 3/4 3/4
Power supply / frequency V/Hz 230/50 400/50
Rated motor current A 3 stage - 0,84  0,47
2 stage - 0,65
1 stage - 0,54
Motor power W 3 stage - 190  190
2 stage - 150
1 stage - 120
Motor speed Rev/min 3 stage - 1 400  1 400
2 stage - 1 050
1 stage - 750
Protection degree IP 54 54
Net weight kg 12 12
Noise dB*** 3 stage - 55 55
2 stage - 49
1 stage - 47

* For parameters 90/70°C and 0°C inlet; ** Max. 120/90°C, 0°C inlet, 3 - stage // min 40/30°C, 20°C inlet, 1 - stage; *** Measurement at the distance 5m;

Dimensions:

Type: а
[mm]
b
[mm]
c
[mm]
HC 20 598 636 340
HC 30 598 636 340
HC 35 598 636 340
HC 45 598 636 340
HC 50 698 739 360
HC 70 698 739 360



Application

The air water heaters are used to heat spaces such as: production halls, warehouses, commercial room, service spaces, garages, workshops, greenhouses, tents, shops, malls, shopping malls, churches  and ect.
