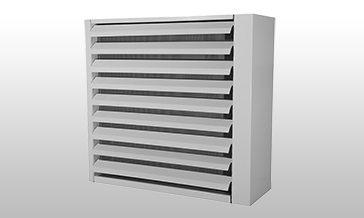

Series Farmer MC

Advandages:

  • Casing made of galvanized steel casing, powder painted, covered with LCE coating which is resistant for acid, salt and ammonia
  • Heating power range from 3,57 kW до 53,6 kW
  • 2-row heating coils
  • Possibility to adjust manually the air stators
  • Possibility to set the temperature
  • 1-stage fan with the protection degree IP 54 fully comply with European standards of ErP 2015
  • 24-months warranty

Technical data:

Parameters: Unit of measure: FARMER MC-3S
Nominal heating capacity kW* 3 stage - 40,6
2 stage - 32,5
1 stage - 23,8
Heating capacity range kW** 3,57 - 53,6
Maximum airflow m3/h 3 stage - 3 450
2 stage - 2 400
1 stage - 1 500
Maximum horizontal range m 19
Number of rows бр. 2
Capacity of water dm3 2
Maximum temperature of working fluid °C 120
Maximum working pressure MPa 1,6
Connection diameter " 3/4
Power supply / frequency V/Hz 230/50
Rated motor current A 3 stage - 0,84
2 stage - 0,65
1 stage - 0,54
Motor power W 3 stage - 190
2 stage - 150
1 stage - 120
Motor speed Rev/min 3 stage - 1 400
2 stage - 1 050
1 stage - 750
Protection degree IP 54
Net weight kg 27
Noise dB*** 3 stage - 56
2 stage - 50
1 stage - 48

* For parameters 90/70°C and 0°C inlet; ** Max 120/90°C, 0°C inlet, 3 stage // min 40/30°C, 20°C inlet, 1 stage; *** Measurement at distance 5m;

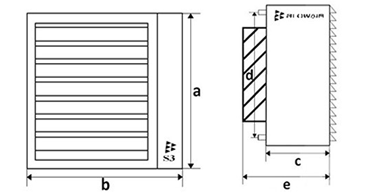

Dimensions:

Type: а
[mm]
b
[mm]
e
[mm]
Farmer MC 660 696 384











Application:

Production halls for food industry, pigsties, rooms with high dustiness, humidity and ammonia in the air.
