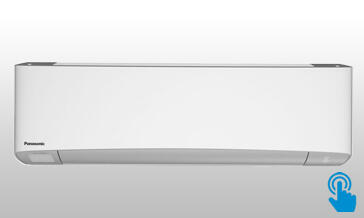

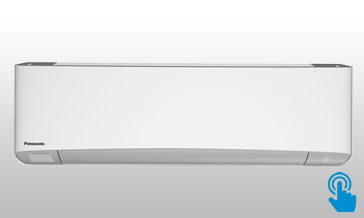

Series ETHEREA

Advantages:

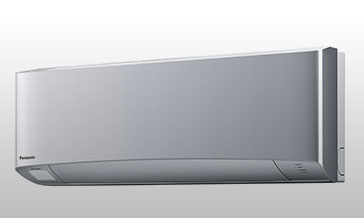

  • E-ION-PLUS, Colour - white PEARL (Z-SKE) / Inox (XZ-SKE), EEV, Wi-Fi-training, Nano-E-air fresheners
  • Sensors for light and motion
  • Very high power, ultra high SEER / SCOP
  • "Heating": up to -15оС, "Cooling": to -10оС
  • Mode: "Quiet" 19 dBa-only 9 and 12, "Powerful"
  • 5 speed internal fan
  • "Mild Dry" - humidity control
  • Made in Malaysia
  • 2 flaps



Price

CS/CU-Z7SKE

CS/CU-XZ7SKE

CS/CU-Z9SKE

CS/CU-XZ9SKE

CS/CU-Z12SKE

CS/CU-XZ12SKE

CS/CU-Z15SKE



CS/CU-Z18SKE

CS/CU-XZ18SKE

CS/CU-Z71TKE



All prices are inclided VAT and excluded installation costs.

BGN

1 500,00/1 550,00

1 550,00/1 600,00

1 750,00/1 800,00

2 200,00

2 500,00/2 550,00

4 000,00

All prices are inclided VAT and excluded installation costs.

Technical data:

Efficiency data

CS/CU-Z7SKE

CS/CU-XZ7SKE

CS/CU-Z9SKE

CS/CU-XZ9SKE

CS/CU-Z12SKE

CS/CU-XZ12SKE

CS/CU-Z15SKE



CS/CU-Z18SKE

CS/CU-XZ18SKE

CS/CU-Z71TKE



Cooling capacity Min./Nom./Max.

kW

2,05 (0,75-2,4) 2,5 (0,85-3,0) 3,5 (0,85-4,0) 4,2 (0,85-5,0) 5,0 (0,98-5,6) 7,1 (0,98-8,5)
Heating capacity Min./Nom./Max.

kW

2,8 (0,7-4,0) 3,4 (0,8-5,0) 4,0 (0,8-5,8) 5,3 (0,8-6,8) 5,8 (0,98-7,5) 8,6 (0,98-10,2)
Seasonal efficiency
(сaccording to EN14825)
Cooling Energy efficiency class A++ A+++ A+++ A++ A++ A++
SEER 7,5 8,5 8,5 6,9 7,3 6,5
Annual energy consumption

kWh

- - - - - -
Heating (Average climate) Energy efficiency class A++ A++ A++ A+ A+ A+
SCOP/A 4,7 4,9 4,9 4,0  4,4  4,2
Annual energy consumption

kWh

- - - - - -
Technical data - Indoor unit

CS/CU-Z7SKE

CS/CU-XZ7SKE

CS/CU-Z9SKE

CS/CU-XZ9SKE

CS/CU-Z12SKE

CS/CU-XZ12SKE

CS/CU-Z15SKE



CS/CU-Z18SKE

CS/CU-XZ18SKE

CS/CU-Z71TKE



Dimensions Unit (HeightxWidthxDepth)

mm

295/919/194 295/919/194 295/919/194 295/919/194 295/919/194 299/1120/236
Air filter



- - - - - -
Sound pressure level  Cooling / Heating

dBA

19/37 19/39 19/42 25/43 34/44 30/47
Technical data - Outdoor unit

CS/CU-Z7SKE

CS/CU-XZ7SKE

CS/CU-Z9SKE

CS/CU-XZ9SKE

CS/CU-Z12SKE

CS/CU-XZ12SKE

CS/CU-Z15SKE



CS/CU-Z18SKE

CS/CU-XZ18SKE

CS/CU-Z71TKE



Dimensions Unit (HeightxWidthxDepth)

mm

- - - - - -
Sound pressure level  Cooling / Heating

dBA

- - - - - -
Operation range Cooling
(Ambient Min.~Max.)

°CDB

-10~- -10~- -10~- -10~- -10~- -10~-
Heating
(Ambient Min.~Max.)

°CWB

-15~- -15~- -15~- -15~- -15~- -15~-
Refrigerant *Type R32 R32 R32 R32 R32 R32



Funcitons:

  1. "Hot Start"
  2. "Econavi"
  3. 24h timer
  4. Adjustment of 4-way valves on the remote control
  5. "AUTO Restart"
  6. "AUTO Comfort"
  7. Wire remote control - option
