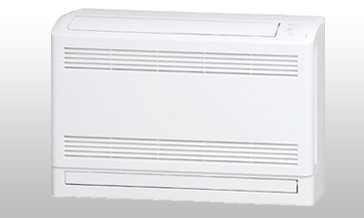

Series DIAMOND FLOOR

Advantages:

  • Inverter, white air conditioner with compact console for floor installation;
  • Ultra high SEER / SCOP, increased power output, reduced power consumption;
  • Humidity sensor;
  • "Heating" to -15 ° C, "Cooling" to -15 ° C;
  • Mode "Silent", "Powerful", "Night 10оС", "Auto Restart", "Hot Start", "AUTO Comfort";
  • 5 speed internal fan;
  • Weekly timer, 24h timer;
  • Illuminated buttons on the remote control;
  • Self-cleaning feature
  • Four-way valve adjustment from the remote control;
  • Made in Thailand;



Price SRF25ZMX-S/     SRC-25SMX-S SRF35ZMX-S/      SRC-35SMX-S SRF50ZMX-S/      SRC-50SMX-S
All prices are inclided VAT and excluded installation costs.

BGN

2 135,00 2 400,00 3 155,00

All prices are inclided VAT and excluded installation costs.

Technical data:

Efficiency data SRF25ZMX-S/     SRC-25SMX-S SRF35ZMX-S/      SRC-35SMX-S SRF50ZMX-S/      SRC-50SMX-S
Cooling capacity Min./Nom./Max.

kW

2,5 (0,9-3,2) 3,5 (0,9-4,1) 5,0 (1,1-5,2)
Heating capacity Min./Nom./Max.

kW

3,4 (0,9-4,7) 4,5 (0,9-5,1) 6,0 (0,6-6,9)
Seasonal efficiency
(сaccording to EN14825)
Cooling Energy efficiency class A++ A++ A+
SEER 6,9 6,67 6,01
Annual energy consumption

kWh

- - -
Heating (Average climate) Energy efficiency class A+ A+ A+
SCOP/A 4,12 4,25 4,19
Annual energy consumption

kWh

- - -

Technical data - Indoor unit

SRF25ZMX-S SRF35ZMX-S SRF50ZMX-S
Dimensions Unit (HeightxWidthxDepth)

mm

600/860/238 600/860/238 600/860/238
Air filter Type



Self-cleaning / Allergen-deactivating / Photocatalytic washing deodorizing Self-cleaning / Allergen-deactivating / Photocatalytic washing deodorizing Self-cleaning / Allergen-deactivating / Photocatalytic washing deodorizing
Noise level Cooling / Heating

dBA

26/29/32/40
28/33/35/40
28/32/34/41
31/35/36/41
32/35/42/46
33/39/41/47

Technical data - Outdoor unit

SRC-25SMX-S SRC-35SMX-S SRC-50SMX-S
Dimensions Unit (HeightxWidthxDepth)

mm

595x780(+62)x290 595x780(+62)x290 640x800(+71)x290
Noise level Cooling / Heating

dBA

47/47 50/50 52/51
Operation range Cooling
(Ambient Min.~Max.)

°CDB

-15~46 -15~46 -15~46
Heating
(Ambient Min.~Max.)

°CWB

-15~24 -15~24 -15~24
Refrigerant *Type/Charge kg-TCO₂Eq/GWP R410А/1,2/
2.506/2088
R410А/1,2/
2.506/2088
R410А/1,5/
3.132/2088

Funcitons:

  1. Power saving features
    Adaptive predictive management; Economy mode;
  2. Air Flow Functions
    Jet technology; 3D auto; Automatic air distribution valves; Storing the position of the flaps; Rotating the air distribution valves in the vertical direction; Rotating the air distribution valves in the horizontal direction;
  3. Cleaning operations and filters
    Allergen-deactivation system; Self-cleaning function; Allergen-deactivating filter; Photocatalytic washing deodorizing filter; Detachable panel;
  4. Functions for comfort and convenience
    Drying mode; Hi Power mode; Quiet mode; Night care; Weekly timer; 24-hour programmable on / off timer; Sleep Mode; On / Off Timer; Comfort start; Lock for children;
  5. Other features
    Microcomputer defrost; Self-diagnosis function; Automatic restart function;
