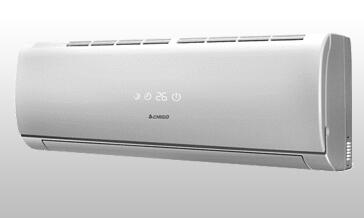

Series CHIGO

Advantages:

  • Indoor unit display
  • Very high energy class SEER / SCOP: A ++ / A +
  • Heating -15oC
  • Cooling up to + 46оС
  • Mode: Heat + 8oC
  • Mode: Turbo
  • Compressor Toshiba (CMCC) for 9 and 12
  • Ionizer
  • 4-way control of the remote control



Price CS25V3 CS35V3 CS51V3 CS61V3 CS70V3
All prices are inclided VAT and excluded installation costs.

BGN

759,00 799,00 1 359,00 1 559,00 1 769,00

All prices are inclided VAT and excluded installation costs.

Technical data:

Efficiency data CS25V3 CS35V3 CS51V3 CS61V3 CS70V3
Cooling capacity Min./Nom./Max.

kW

2,5 (1,5-3,2) 3,5 (1,6-3,95) 5,1 (1,8-5,9) 6,1 (2,5-6,5) 7,0 (2,6-7,2)
Heating capacity Min./Nom./Max.

kW

2,5 (1,48-3,35) 3,6 (1,55-4,25) 5,2 (1,8-6,1) 6,1 (2,1-7,0) 7,0 (2,0-7,5)
Seasonal efficiency
(сaccording to EN14825)
Cooling Energy efficiency class A++ A++ A++ A+ A+
SEER 6,1 6,1 6,1 5,6 5,6
Annual energy consumption

kWh

- - - - -
Heating (Average climate) Energy efficiency class A+ A+ A+ A+ A+
SCOP/A 4,0 4,0 4,0 4,0  4,0
Annual energy consumption

kWh

- - - - -
Technical data - Indoor unit CS25V3 CS35V3 CS51V3 CS61V3 CS70V3
Dimensions Unit (HeightxWidthxDepth)

mm

276/780/202 276/780/202 292/900/215 302/1080/220 302/1080/220
Air filter Type



Vitamin C каталитичен Vitamin C каталитичен Vitamin C каталитичен Vitamin C каталитичен Vitamin C каталитичен
Sound pressure level  Cooling / Heating

dBA

27/37 27/39 40/46 42/48 42/48
Technical data - Outdoor unit CS25V3 CS35V3 CS51V3 CS61V3 CS70V3
Dimensions Unit (HeightxWidthxDepth)

mm

- - - - -
Sound pressure level  Cooling / Heating

dBA

- - - - -
Operation range Cooling
(Ambient Min.~Max.)

°CDB

-~46 -~46 -~46 -~46 -~46
Heating
(Ambient Min.~Max.)

°CWB

-15~- -15~- -15~- -15~- -15~-
Refrigerant *Type R-410A R-410A R-410A R-410A R-410A



Funcitons:

  1. Turbo
