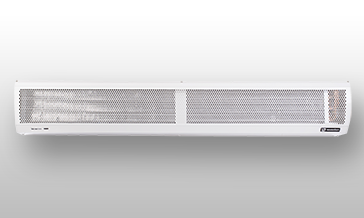

Series AERIS 150WN - 1P

Advantages:

  • Durable steel casing, powder painted
  • Heating power 21,9–26,1 kW
  • Three operation modes
  • Easy assembly

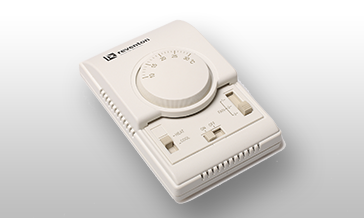

  • Remote control, door switch and mounting panel are included in each set
  • 3-stage fan speed controller
  • 24-months warranty





Technical data:

Parameters: Unit of measure: AC150WN-1P
Power of the device kW* 3 stage - 26,1
2 stage - 24,1
1 stage - 21,9
Maximum airflow m3/h 3 stage - 2 250
2 stage - 2 000
1 stage - 1 750
Maximum air speed m/s 3 stage - 9
2 stage - 8
1 stage - 7
Water flow rate dm3/h 3 stage - 1 150
2 stage - 1 062
1 stage - 968
Maximum water temperature °C 90
Maximum pressure MPa 1,6
Connection diameter " 3/4
Power supply / Frequency V/Hz 230/50
Rated motor current A 3 stage - 0,87
2 stage - 0,78
1 stage - 0,70
Maximum motor power W 3 stage - 200
2 stage - 180
1 stage - 160
Class of isolation / Protection degree -/IP E / IP20
Net weight kg 28
Noise dB 3 stage - 59
2 stage - 57
1 stage - 54

* According to parameters: water 90/60°C and inlet air temperature 0°C;

Application:

Air curtains are widely installed at the entrances of supermarket, theater, meeting room, hotel, office room, storage room etc.
