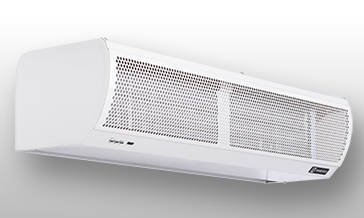

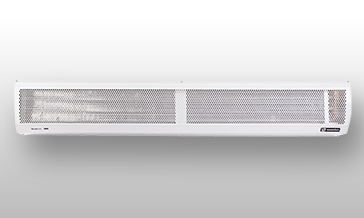

Series AERIS 100WN - 1P

Advantages:

  • Durable steel casing, powder painted
  • Heating power 14,2–17 kW
  • Three operation modes
  • Easy assembly
  • Remote control, door switch and mounting panel are included in each set

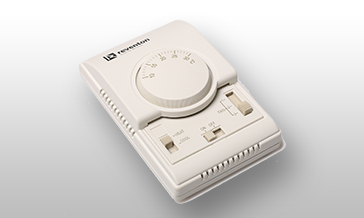

  • 3-stage fan speed controller
  • 24-months warranty





Technical data:

Parameters: Unit of measure: AC100WN-1P
Power of the device kW* 3 stage - 17,0
2 stage - 15,8
1 stage - 14,2
Maximum airflow m3/h 3 stage - 1 500
2 stage - 1 350
1 stage - 1 150
Maximum air speed m/s 3 stage - 9
2 stage - 8
1 stage - 7
Water flow rate dm3/h 3 stage - 749
2 stage - 698
1 stage - 625
Maximum water temperature °C 90
Maximum pressure MPa 1,6
Connection diameter " 3/4
Power supply / Frequency V/Hz 230/50
Rated motor current A 3 stage - 0,65
2 stage - 0,57
1 stage - 0,52
Maximum motor power W 3 stage - 150
2 stage - 130
1 stage - 120
Class of isolation / Protection degree -/IP E / IP20
Net weight kg 18
Noise dB 3 stage - 57
2 stage - 55
1 stage - 52

* According to parameters: water 90/60°C and inlet air temperature 0°C;

Application:

Air curtains are widely installed at the entrances of supermarket, theater, meeting room, hotel, office room, storage room etc.
