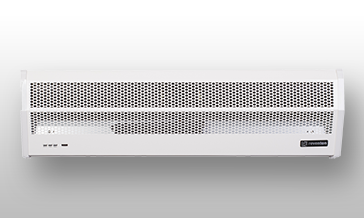

Series AERIS 100E - 1P

Advantages:

  • Durable steel casing, powder painted
  • Heater power 2-6 kW
  • Two operation modes
  • Easy assembly
  • Remote control, door switch and mounting panel included in each set
  • 2-stage fan speed controller
  • 24-months warranty





Technical data:

Parameters: Unit of measure: AC100E1P
Heater power kW 3 stage - 6,0
2 stage - 4,0
1 stage - 2,0
Current consumption A 3 stage - 26,1
2 stage - 17,4
1 stage - 8,7
Maximum airflow dm3/h 2 stage - 1 200
1 stage - 1 100
Maxumim air speed m/s 2 stage - 8,5
1 stage - 7,5
Power supply/Frequency V/Hz 230/50
Maximum motor power W 2 stage - 180
1 stage - 130
Rated motor current A 2 stage - 0,78
1 stage - 0,57
Class of isolation/Protection degree -/IP E / IP20
Net weight kg 15,5
Noise dB 2 stage - 57
1 stage - 55

Application:

Air curtains are widely installed at the entrances of supermarket, theater, meeting room, hotel, office room, storage room etc.
